Enclosed Sound Proof Tiny Diesel Generator With AVR Excitation System

Contact Now

Detailed Product Description

Model:	KDE6500T/5KW Soundproof Diesel Generator	Prime Power:	4.5KW
Max Power:	5KW	Voltage:	220V
Structure:	Silent Type	Start System:	Electric Start
Highlight:	miniature diesel generator , small diesel generator

5KW Soundproof Small Diesel Generators For Home Backup , Portable Diesel Power Generator

We are a team of high responsibility, being honest and sincere while business is the foremost principle for us!

We have four departments:

- Design department,

- Sales department,

- Administration department,

- Testing department:

Add:No.8District CHudai Industrial Area,Wuxi.China.Code:214161
Quotation Sheet

Model:	KDE6500T/AC Single Phase 5KW key start silent diesel generator power set
Frequency:		50HZ
Rate Power:		4.5KW
Max.power:		5.0KW
Voltage(V):		220V
Current(A):		22A
Engine Speed:		3000rpm
Phase:		AC Single phase
Power factor:		1
Excitation system:		with AVR(self-excited constant voltage)
Noise level(at 7m):		72-75dB(A)
Fuel Tank Capacity:		15L
Structure:		Closed Structure
Panel:		Ordinary Panel Board
DC 12V output:		Terminal post
Net weight:		158Kg
Dimension(LWH):		912532740mm
Engine Model:		KA186F/8HP air-cooled diesel engine set
Engine Type:		Single Cylinder and four stroke air-cooled diesel engine
Alternator Type:		100% copper
Bore*Stroke(mm):		86*70mm
Displacement(L):		0.406L
Rated Power:		5.7KW/3000rpm
Engine Start system:		Electric Start
Quantity:		72 sets (one 20 foot container)
Unit Price:		US$525.FOB.Shanghai Port
20 Foot Container :		72 sets
Payment:		T/T .L/C
Delivery Time:		25 days
Warranty:		12 Months

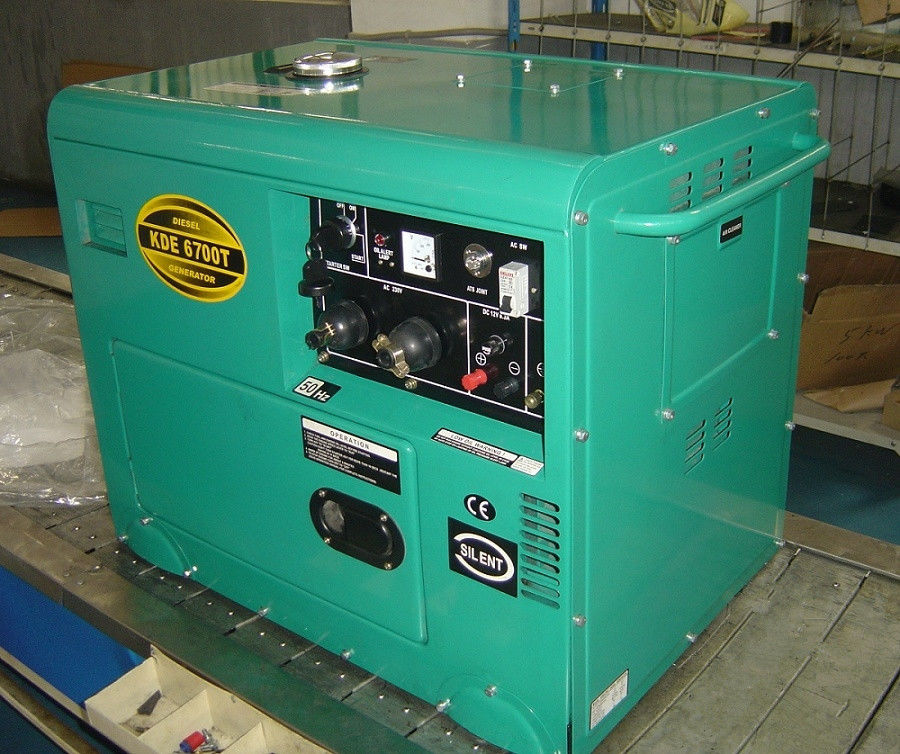

Picture:
