| Place of Origin: | China |
| Brand Name: | KAIAO |
| Certification: | CE/ISO/SGS |
| Model Number: | KA180FS |
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons |
| Delivery Time: | 10 working days after received down-payment |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 20,000 pcs per month |
| Rated/Max. Power (KVA): | 4.8 | Bore X Stroke (mm): | 80x67 |
|---|---|---|---|
| Displacement (cc): | 337 | Rated Speed (rpm): | 1500 |
| Compression Ration: | 20 | Starting Mode: | Recoil |
| Rotation Direction: | Anticlockwise Face To Output Axle | Lubricating System: | Pressure Splashed |
| Fuel Consumption (g/kva.h): | ≤276.1 | Fuel Type: | 0#, -10#, -20# Diesel |
| Fuel Tank Capacity (L): | 3.5 | Lube Oil Type: | CD Grade Or SAE 10W-30, 15W-40 |
| Lube Oil Capacity (L): | 1.1 | Net Weight (KGS): | 35 |
| Highlight: | small diesel engine,air cooled single cylinder diesel engine |
||

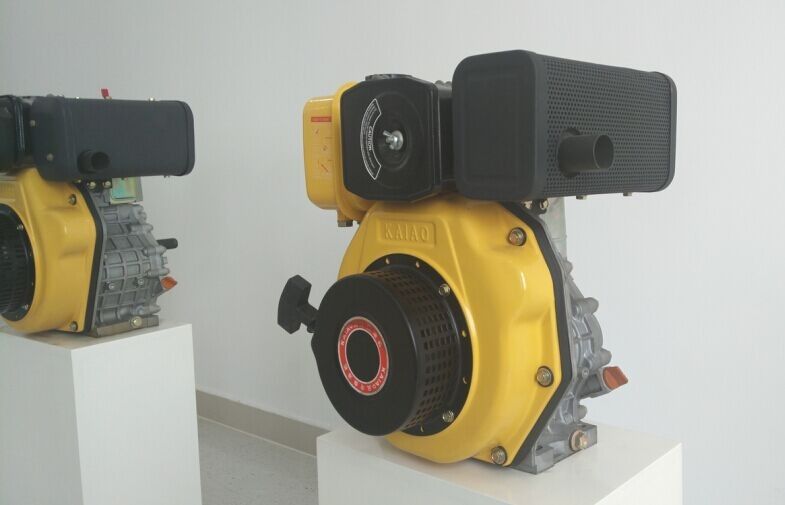

337cc Displacement Lightweight Small Diesel Engine , Forced Air Cooled Engine
We are a team of high responsibility, being honest and sincere while business is the foremost principle for us!
We have four departments:
- Design department,
- Sales department,
- Administration department,
- Testing department:
Application:
KAIAO air-cooled single cylinder engines could be assemble with Agricultural machines (such as Tillers), marine boats, generators & pump sets etc.
Unique Driving System
Adopted designed precise gear driving & balance shaft system to ensure more excellent performance & stable than other makers
Perfect Direct Injection
To realize the ideal match between the combustion chamber and injection system, keep maximum power from every drop of diesel, it’s extraordinarily low fuel consumption & environmentally friendly engine.
Low Vibration & Low Noise
Vibration & Noise reduction is achieved through the adopt of precision balancers. It makes operation comfort even under long working hours.
Compact Design, Quick & Easy Start
With stronger but lightweight alloy used for main engine parts, extra tough crankshaft and overall compact structure, ensure powerful and simple to install and quick & easy to start.
