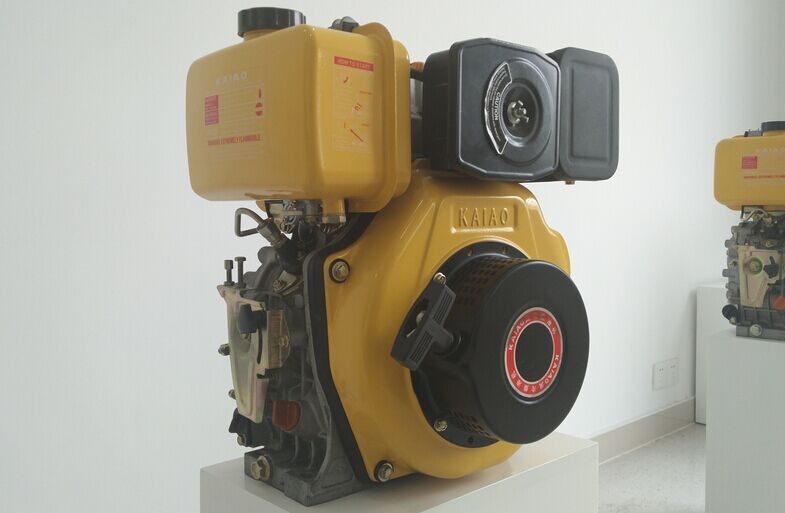

Single Cylinder Air Cooled Diesel Engine For Agriculture Low Noise

Product Details:

Place of Origin:	China
Brand Name:	KAIAO
Certification:	CE/ISO/SGS
Model Number:	KA186F

Payment & Shipping Terms:

Minimum Order Quantity:	5 pcs
Price:	Negotiable
Packaging Details:	Cartons
Delivery Time:	10 working days after received down-payment
Payment Terms:	T/T or L/C
Supply Ability:	20,000 pcs per month

Contact Now

Detailed Product Description

Rated/Max. Power (KW):	5.7/6.3	Bore X Stroke (mm):	86x70
Displacement (cc):	406	Rated Speed (rpm):	3000
Compression Ration:	19	Starting Mode:	Recoil
Rotation Direction:	Anticlockwise Face To Output Axle	Lubricating System:	Pressure Splashed
Fuel Consumption (g/kva.h):	≤271.5	Fuel Type:	0#, -10#, -20# Diesel
Fuel Tank Capacity (L):	5.5	Lube Oil Type:	CD Grade Or SAE 10W-30, 15W-40
Lube Oil Capacity (L):	1.65	Net Weight (KGS):	47
Highlight:	diesel engine for farming , diesel engine for agriculture

Custom 3000rpm Manual Starter 7.6Hp Tiller Engine , Forced Air Cooled Engine

Application:

KAIAO air-cooled single cylinder engines could be assemble with Agricultural machines (such as Tillers), marine boats, generators & pump sets etc.

R&D:

We have a professional R&D team with years of experience in power machinery to provide diesel engines, generator, pump, etc. with the best quality and high stability. Our R&D team will go on working hard to meet any clients' requirements.

Unique Driving System

Adopted designed precise gear driving & balance shaft system to ensure more excellent performance & stable than other makers

Perfect Direct Injection

To realize the ideal match between the combustion chamber and injection system, keep maximum power from every drop of diesel, it’s extraordinarily low fuel consumption & environmentally friendly engine.

Low Vibration & Low Noise

Vibration & Noise reduction is achieved through the adopt of precision balancers. It makes operation comfort even under long working hours.

Compact Design, Quick & Easy Start

With stronger but lightweight alloy used for main engine parts, extra tough crankshaft and overall compact structure, ensure powerful and simple to install and quick & easy to start.
