| Place of Origin: | CHINA |
| Brand Name: | KAIAO |
| Certification: | CE |
| Model Number: | KDP30H |
| Minimum Order Quantity: | 5 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CARTONS |
| Payment Terms: | Western Union, T/T, L/C |
| Presure: | High | Pump Material: | Cast Iron |
|---|---|---|---|
| Power: | Diesel Fuel Driven | Pressure: | High |
| Model: | KDP30H | Dimension (L*W*H)(mm): | 675*565*735 |
| Highlight: | high pressure water pump,diesel engine driven water pumps |
||

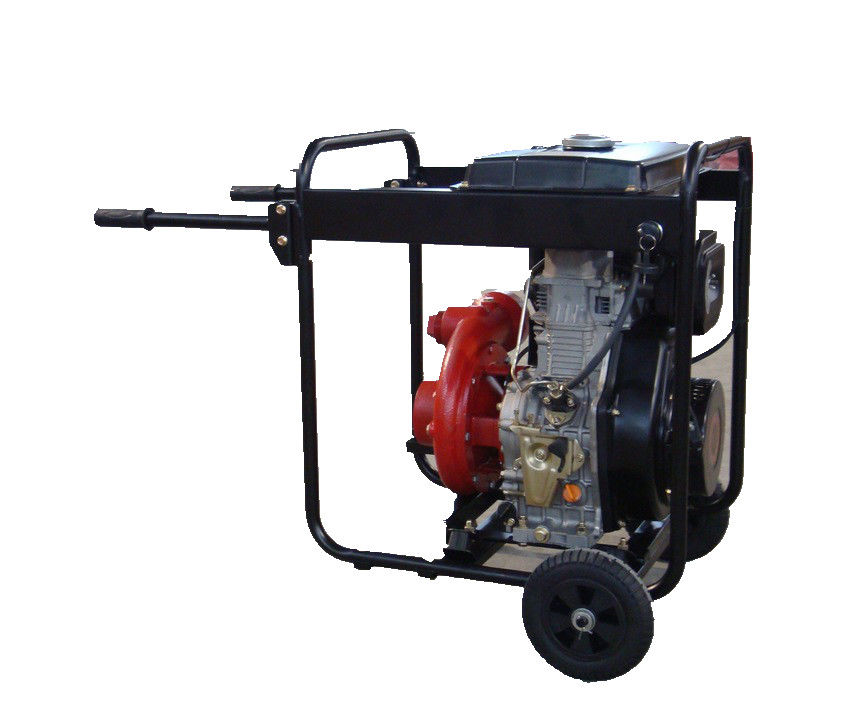

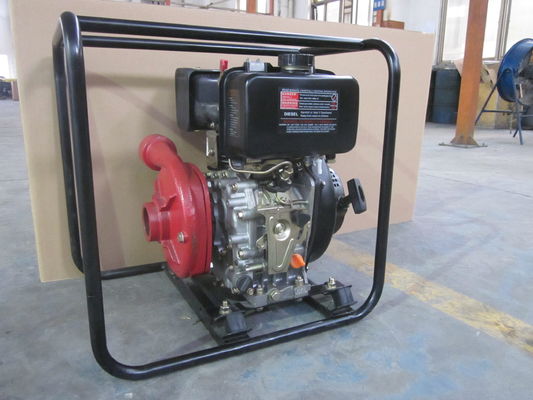

Cast Iron High Pressure Water Pump Big Fuel Tank KDP30H With Handles And Wheels
1. ISO&CE improved
2. Driven by strong KAIAO 4-stroke diesel engine
3. Bilobed wheel design
4. Full frame structure ensures the outstanding performance of the pump in extremely hard condition.
Wuxi Kaiao Power Machinery CO., LTD. is a group corporation and has two subsidiary companies: Wuxi XiRong Textile Machinery Parts CO., LTD. and Wuxi Hushan Absorber CO., Ltd.
The group’s main products are small air-cooled diesel engines, 2.5 KW to 250 KW series diesel/gasoline generator sets, welding sets, water pumps, gardening machines, farming machines, mountain farming auxiliary machines, small engineering machines, textile machinery accessories, motorcycle absorbers etc.
The group is located by the beautiful Tai-Lake in Wuxi, the Asian Pearl-Shanghai to its east and the ancient capital Nanjing to its west, the Beijing-Shanghai Railroad and the Shanghai-Nanjing high speed be cross the territory, it makes the transportation be very convenient.
| Diesel Water Pump(IRON) 3" High Pressure | |
| with handles,and 2*9inch wheels | |
| Model | KDP30H |
| Diameter(mm) (inch) | 80(3" ) |
| Max. flow(m3/h) | 47 |
| Rated total head(m) | 75 |
| Max. suction head(m) | 8 |
| Rotational speed(rpm) | 3600 |
| Self-priming time(s/4m) | 120 |
| Pump shaft | Steel |
| Pump housing | cast iron |
| Impeller | cast iron |
| connection type | direct |
| Self-priming time(s/4m) | 40 |
| Engine model | KA186FA |
| Engine type | Single-cylinder, vertical, four-stroke,air cooled |
| Bore*stroke(mm) | 86*72 |
| Displacement (L) | 0.418 |
| Power (kW) | 6.3/3600 |
| Fuel consumption rate(g.kW/h) | 281 |
| Compression ratio | 19 |
| Lubrication system | Pressure splash Type |
| Engine starting system | Electric starter |
| Fuel oil model | Summer:0#,Winter:-10# |
| Lube oil model | SAE10W-30 (above CD grade) |
| Lube oil capacity (L) | 1.1 |
| Fuel tank capacity (L) | 12.5 |
| Dimension (L*W*H)(mm) | 675*565*735 |
| Net weight(Kg) | 62 |
| Gross weigt(Kg) | 70 |
